Stainless Steel Sheets
Stainless Steel Sheet Is Prized For Its Durability, Strength, And Ability To Endure Corrosion. It Is Used In Medical Equipment, Kitchenware, Architecture And Construction. Grades, Finishes, And Thicknesses Vary Based On Use.
- +91 9867630346 Call us
- info@palgottametal.com Mail to us
- Mon - Fri 9am - 6pm Timing
Sheet Metal

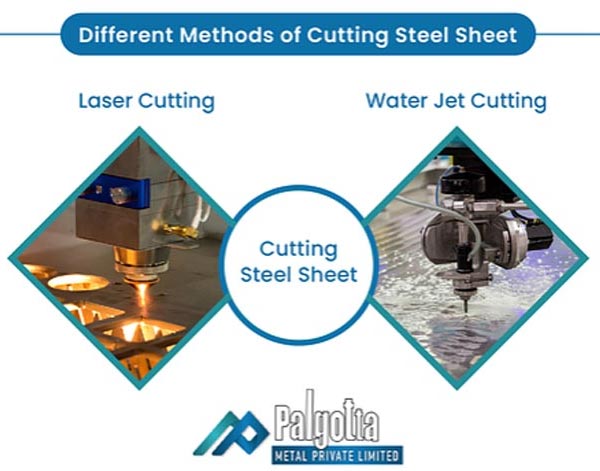

Sheet is made from metal such as steel, aluminium, nickel, or titanium and is used in various industrial applications. It is a rolled product that comes from a coil, enabling large-scale production of uniform sheets. These sheets can be shaped, cut, and fabricated into different forms to match project needs. Steel sheet products are among the most used materials in manufacturing and construction. Different methods for cutting steel sheet, such as shearing, punching, or laser cutting, make it easy to adapt for countless applications.
Steel Sheet Suppliers
Palgotta Metal is a reliable supplier of premium steel sheets. We provide sheet stock metal in a wide variety of grades, thicknesses and lengths. To fit specific projects customers can ask for custom shapes and finishes or choose from standard sizes. Our range includes stainless steel, aluminium, nickel, and titanium sheets. With sheet metal for sale in multiple options, we supply reliable solutions for industries that need strong and adaptable steel sheets in different forms.
Duplex Steel Sheet
Duplex Steel Sheet Combines Ferrite And Austenite, Giving High Strength And Corrosion Resistance. It Performs Well In Chemical Plants, Offshore Structures, And Desalination Systems.
Super Duplex Steel Sheet
Higher Amounts Of Nickel, Molybdenum And Chromium Are Found In Super Duplex Sheets. They Are Made To Resist Stress Cracking, Corrosion In Crevices, And Harsh Marine, Chemical, And Oil Environments.
Aluminium Sheet
Aluminum Sheets Are Easy To Work With, Lightweight And Resistant To Corrosion. They Are Used In Manufacturing, Electronics, Transportation And Construction.
Monel Sheets
Monel Sheet Is A Nickel-Copper Alloy With Good Mechanical Properties And Excellent Corrosion Resistance, Used In High Temperature Applications, Salt Water, And Caustic Solutions.

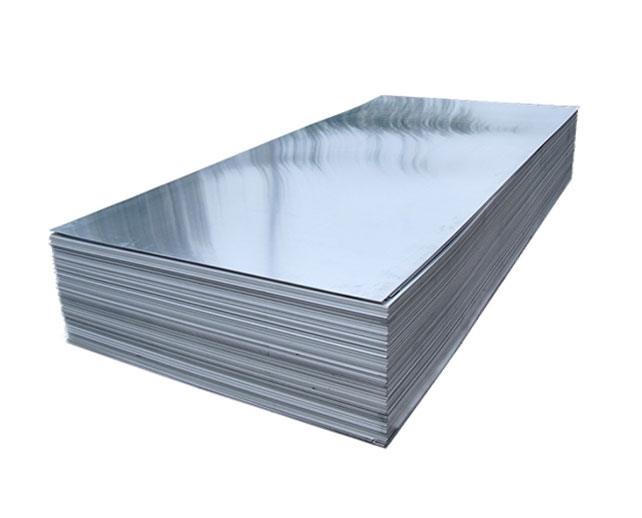

Inconel Sheet
Inconel Sheet Is A Nickel-Chromium Alloy That Endures Heat, Pressure, And Corrosion. It Is Used In Aerospace, Turbines, And Chemical Processing Equipment.

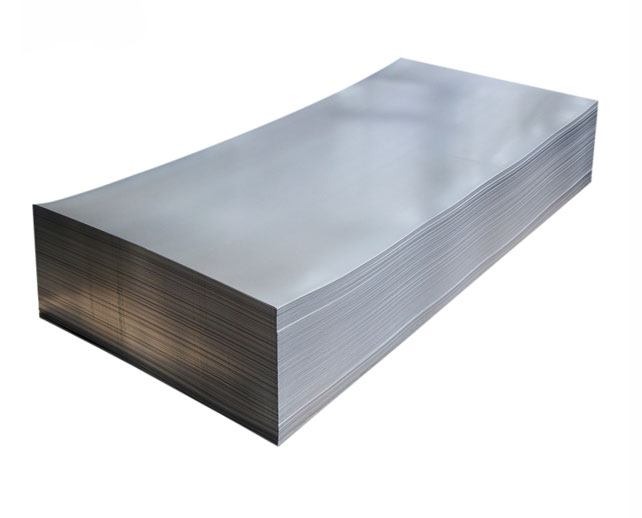

Hastelloy Sheet
Hastelloy Sheets Are Known For Excellent Corrosion And Heat Resistance. They Are Used In Power Generation, Aerospace, And Chemical Industries.
Nickel Alloy Sheets
Nickel Alloy Sheets Blend Nickel With Other Metals For Strength And Durability. They Are Perfect For Medical Implants, Automotive, Aerospace, And Chemical Uses.

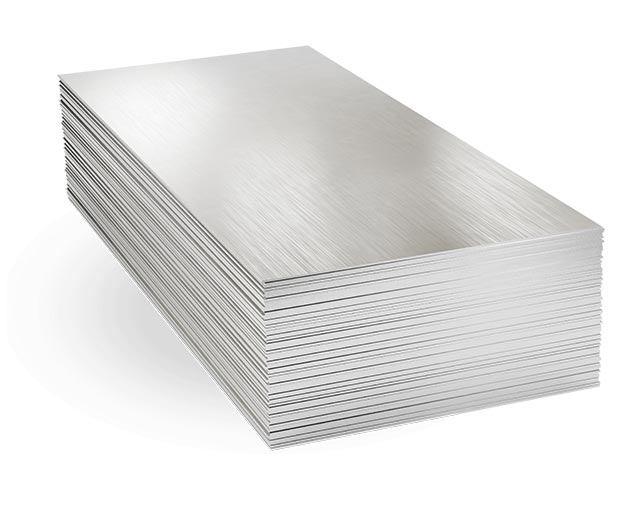

Titanium Sheet
Titanium Sheets Are Strong, Light, And Biocompatible. They Are Popular In Aerospace, Marine Structures, Implants, And Architectural Applications.

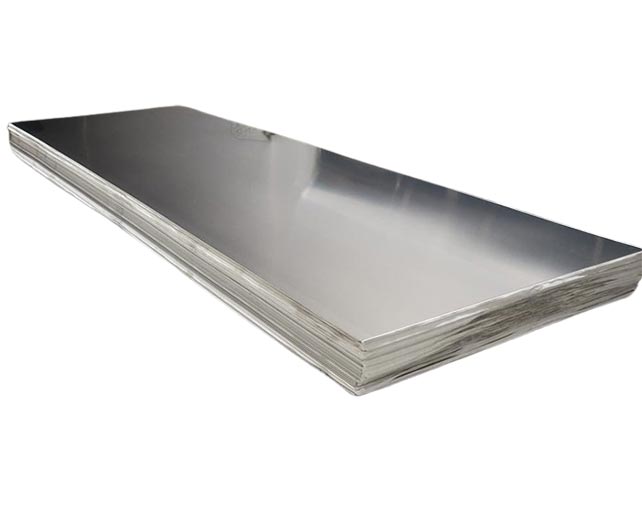

Alloy 20 Sheet
Alloy 20 Sheets Resist Acidic Environments Like Sulfuric Acid. They Are Used In Chemical Plants, Food Processing, And Pharmaceuticals.

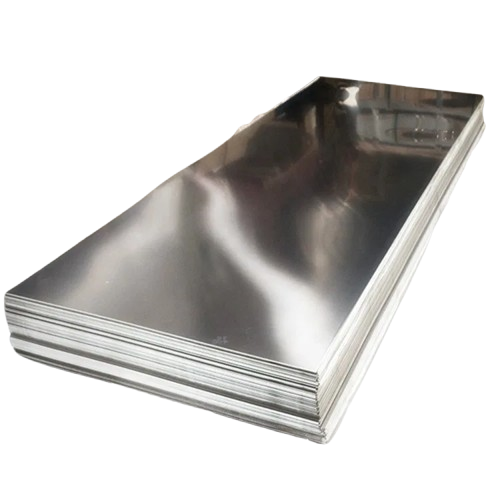

SMO 254 Sheet
SMO 254 Sheets Are Designed For Seawater, Oil, And Pulp Industries. They Resist Chloride Stress Cracking And Corrosion, Often Replacing High-Nickel Alloys.
Steel Sheet Specification
To meet the needs of different industries, steel sheet specifications include grades, widths, lengths, thicknesses, and surface finishes. To maintain uniform quality, they also define tolerance levels.
| Category | Options / Values |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Surface Finishing | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc. |
Sheet Metal Fabrication
Sheet metal fabrication shapes thin sheets into final products without altering thickness. Processes include bending, cutting, punching, riveting, splicing, and laser or water jet cutting. Common products include appliances, panels, and machine enclosures. For industrial use the process guarantees accuracy, robustness, and uniformity. The process of transforming raw steel sheet into products that can be used in both industrial and daily settings is known as sheet fabrication.
Steel Sheet Thickness Gauge
Steel sheet thickness is measured using a standard gauge system that defines sheet weight and durability. This helps select the right material for each project.
| Gauge | US Standard Gauge | Sheet Steel | Galvanized Steel | Stainless Steel | Aluminum | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| in" | mm | in" | mm | in" | mm | in" | mm | in" | mm | |
| 7/0 0000000 |
0.500" | 12.700mm | ||||||||
| 6/0 000000 |
0.469" | 11.908mm | 0.469" | 11.905mm | 0.580" | 14.732mm | ||||
| 5/0 00000 |
0.438" | 11.113mm | 0.438" | 11.113mm | 0.517" | 13.119mm | ||||
| 4/0 0000 |
0.406" | 10.320mm | 0.406" | 10.317mm | 0.460" | 11.684mm | ||||
| 3/0 000 |
0.375" | 9.525mm | 0.375" | 9.525mm | 0.410" | 10.404mm | ||||
| 2/0 00 |
0.344" | 8.733mm | 0.344" | 8.730mm | 0.365" | 9.266mm | ||||
| 1/0 0 |
0.313" | 7.938mm | 0.313" | 7.938mm | 0.325" | 8.252mm | ||||
| 1 | 0.281" | 7.146mm | 0.281" | 7.142mm | 0.289" | 7.348mm | ||||
| 2 | 0.266" | 6.746mm | 0.266" | 6.746mm | 0.258" | 6.543mm | ||||
| 3 | 0.250" | 6.350mm | 0.239" | 6.073mm | 0.250" | 6.350mm | 0.229" | 5.827mm | ||
| 4 | 0.234" | 5.954mm | 0.224" | 5.695mm | 0.234" | 5.954mm | 0.204" | 5.189mm | ||
| 5 | 0.219" | 5.558mm | 0.209" | 5.314mm | 0.219" | 5.555mm | 0.182" | 4.620mm | ||
| 6 | 0.203" | 5.159mm | 0.194" | 4.935mm | 0.203" | 5.159mm | 0.162" | 4.115mm | ||
| 7 | 0.188" | 4.763mm | 0.179" | 4.554mm | 0.188" | 4.763mm | 0.144" | 3.665mm | ||
| 8 | 0.172" | 4.366mm | 0.164" | 4.176mm | 0.168" | 4.267mm | 0.172" | 4.366mm | 0.129" | 3.264mm |
| 9 | 0.156" | 3.970mm | 0.150" | 3.797mm | 0.153" | 3.886mm | 0.156" | 3.967mm | 0.114" | 2.906mm |
| 10 | 0.141" | 3.571mm | 0.135" | 3.416mm | 0.138" | 3.505mm | 0.141" | 3.571mm | 0.102" | 2.588mm |
| 11 | 0.125" | 3.175mm | 0.120" | 3.038mm | 0.123" | 3.124mm | 0.125" | 3.175mm | 0.091" | 2.304mm |
| 12 | 0.109" | 2.779mm | 0.105" | 2.657mm | 0.108" | 2.743mm | 0.109" | 2.779mm | 0.081" | 2.052mm |
| 13 | 0.094" | 2.383mm | 0.090" | 2.278mm | 0.093" | 2.362mm | 0.094" | 2.380mm | 0.072" | 1.829mm |
| 14 | 0.078" | 1.984mm | 0.075" | 1.897mm | 0.079" | 2.007mm | 0.078" | 1.984mm | 0.064" | 1.628mm |
| 15 | 0.070" | 1.786mm | 0.067" | 1.709mm | 0.071" | 1.803mm | 0.070" | 1.786mm | 0.057" | 1.450mm |
| 16 | 0.063" | 1.588mm | 0.060" | 1.519mm | 0.064" | 1.626mm | 0.063" | 1.588mm | 0.051" | 1.290mm |
| 17 | 0.056" | 1.430mm | 0.054" | 1.367mm | 0.058" | 1.473mm | 0.056" | 1.427mm | 0.045" | 1.151mm |
| 18 | 0.050" | 1.270mm | 0.048" | 1.214mm | 0.052" | 1.321mm | 0.050" | 1.270mm | 0.040" | 1.024mm |
| 19 | 0.044" | 1.113mm | 0.042" | 1.062mm | 0.046" | 1.168mm | 0.044" | 1.110mm | 0.036" | 0.912mm |
| 20 | 0.038" | 0.953mm | 0.036" | 0.912mm | 0.040" | 1.016mm | 0.038" | 0.953mm | 0.032" | 0.813mm |
| 21 | 0.034" | 0.874mm | 0.033" | 0.836mm | 0.037" | 0.940mm | 0.034" | 0.874mm | 0.029" | 0.724mm |
| 22 | 0.031" | 0.795mm | 0.030" | 0.759mm | 0.034" | 0.864mm | 0.031" | 0.792mm | 0.025" | 0.643mm |
| 23 | 0.028" | 0.714mm | 0.027" | 0.683mm | 0.031" | 0.787mm | 0.028" | 0.714mm | 0.023" | 0.574mm |
| 24 | 0.025" | 0.635mm | 0.024" | 0.607mm | 0.028" | 0.711mm | 0.025" | 0.635mm | 0.020" | 0.511mm |
| 25 | 0.022" | 0.556mm | 0.021" | 0.531mm | 0.025" | 0.635mm | 0.022" | 0.556mm | 0.018" | 0.455mm |
| 26 | 0.019" | 0.478mm | 0.018" | 0.455mm | 0.022" | 0.559mm | 0.019" | 0.475mm | 0.016" | 0.404mm |
| 27 | 0.017" | 0.437mm | 0.016" | 0.417mm | 0.020" | 0.508mm | 0.017" | 0.437mm | 0.014" | 0.361mm |
| 28 | 0.016" | 0.396mm | 0.015" | 0.378mm | 0.019" | 0.483mm | 0.016" | 0.396mm | 0.013" | 0.322mm |

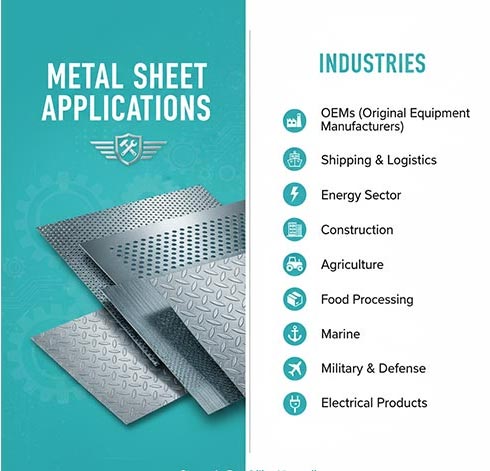

Metal Sheet Applications
Due to its strength, durability and ease of fabrication, sheet metal is a material that finds use in a wide range of industries. It is used in OEMs, shipping, energy, construction, agriculture, food processing, packaging, marine, aerospace, military, and electrical products.
Steel Sheet vs Plate
The difference between sheet metal and plate is thickness. A steel sheet ranges from 0.5mm to less than 6mm, while steel plate is 6mm or thicker. Sheets are often chosen for lighter applications, while plates are used where heavy strength is needed. Understanding the difference between sheet metal and plate helps in selecting the right option for your project.
