AISI 4130 Pipes & Tubes Supplier, Stockist

4130 Chromoly Tubing, ASTM A519 Grade 4130 Seamless Pipe, Alloy Steel 4130 Welded Pipes Stockist, SAE 4130 Pipe, 4130 Steel Tubes, AISI 4130 Pipe, AISI 4130 Pipe Suppliers in India, 4130 Chromoly Tube Supplier in Mumbai.

AISI 4130 Pipes & Tubes are high-quality, low-alloy steel pipes and tubes that are made from AISI 4130 steel. This steel is a chromium-molybdenum alloy, which means it contains chromium and molybdenum as its primary alloying elements. Palgotta Metal Pvt Ltd is proud to offer a wide range of AISI 4130 Pipes & Tubes. Our pipes and tubes are designed, manufactured, and tested to meet the highest international quality standards. We use state-of-the-art technology and rigorous manufacturing processes to ensure our products deliver superior application performance. We have a complete range of products available in various shapes, sizes, and grades to meet the ever-changing needs of our customers.

Table of Content

4130 Alloy Steel Welded Tube, ASME SA519 4130 Steel Seamless Tube, 4130 Chrome Moly Steel Mechanical Tubing Manufacturers, UNS G41300 SMLS Pipe, AISI 4130 Seamless Pipe, SAE 4130 Steel ERW Pipes Stockist in India.

Our AISI 4130 Seamless Pipes are corrosion-resistant and can withstand harsh environments for extended periods. They offer superior strength, durability, and reliability at an affordable price, making them ideal for the most demanding applications. By investing in our AISI 4130 Steel Tube, you can rest assured that your project will be completed with ease and precision while maintaining the highest level of safety and quality.

What are AISI 4130 Pipes & Tubes?

AISI 4130 Pipes & Tubes are low-alloy steel containing chromium and molybdenum as strengthening agents. They are commonly used in the oil and gas industry due to their strong resistance to corrosion and extreme temperature.

AISI 4130 Pipes Tubes

What are the advantages of AISI 4130 Pipes & Tubes?

These pipes and tubes offer several features that make them advantageous for industrial applications, including excellent weldability, superior strength-to-weight ratio, good formability, abrasion resistance, fatigue resistance, toughness, and exceptional machinability. Additionally, AISI 4130 Pipes & Tubes have a high yield strength of 90kpsi, making them ideal for use in pressure vessels or piping systems subject to pressure.

What are the applications of AISI 4130 Pipes & Tubes?

Their wide range of applications includes oil and gas exploration, valve manufacture, tubing for automotive systems, welded tubes for hydraulic cylinders, aircraft components, pump shafts, and bicycle frames.

Overall, AISI 4130 Pipe is an ideal choice for many industrial applications due to their superior strength-to-weight ratio, weldability, and corrosion resistance. This makes them a cost-effective material that is reliable and suitable for use even in the most extreme temperature conditions. Their versatility makes them ideal for various applications, including oil and gas exploration, valve manufacturing, automotive systems, hydraulic cylinders, and more. As such, 4130 Chromoly Steel Pipe are an excellent choice for industries looking to cut costs while ensuring the optimal performance of their products.

Pipes & Tubes Manufacturer

AISI 4130 Specification for Pipes & Tubes

  • Standards: ASTM A519 ASME SA519 / ASTM A29 ASME SA29
  • Size : 4 to 219mm W. T.: 0.5 to 20mm
  • Standard: ASTM, ASME and API
  • Length: Single Random, Double Random & Required Length
  • Form : Round Pipes & Tubes, Square Pipes & Tubes, Rectangular Pipes & Tubes
  • Thickness: 0.5 - 20mm
  • Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
  • Types: Seamless / ERW / EFW / Welded
  • End: Plain End, Beveled End, Treaded

SAE 4130 Equivalent Material of Pipes & Tubes

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
AISI 4130 G41300 1.7218 – 25CrMo4 JIS G4105 BS 970 –

Different Types of AISI 4130 Steel Pipes & Tubes

AISI 4130 Seamless Pipes
AISI 4130 Seamless Pipes

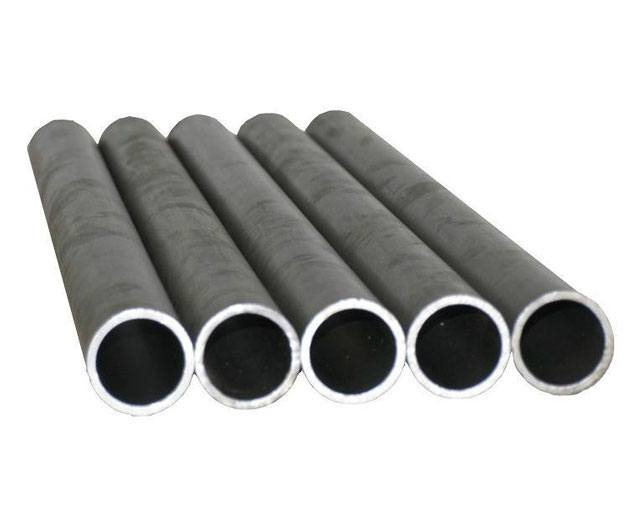

AISI 4130 Welded Pipe
AISI 4130 Welded Pipe

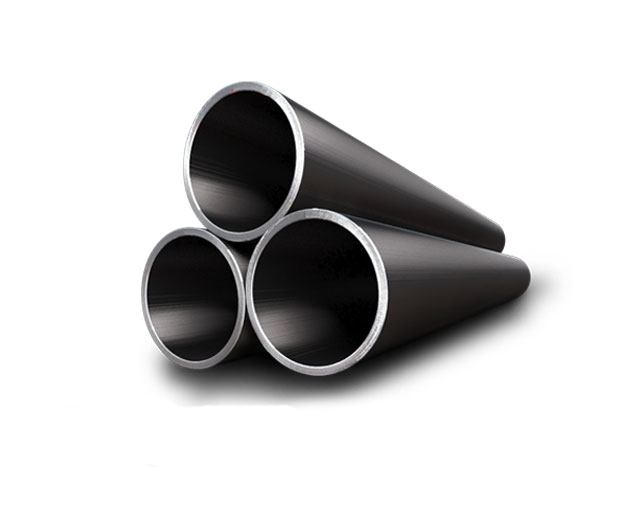

AISI 4130 EFW Pipes
AISI 4130 EFW Pipes
AISI 4130 Seamless Tubes
AISI 4130 Seamless Tubes

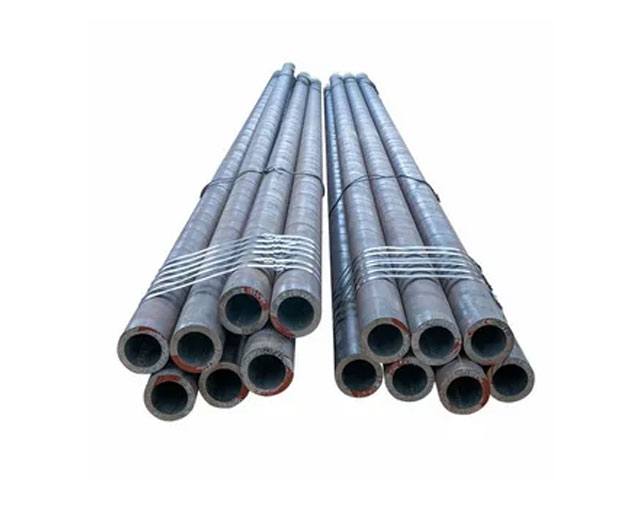

AISI 4130 Welded Tubes
AISI 4130 Welded Tubes

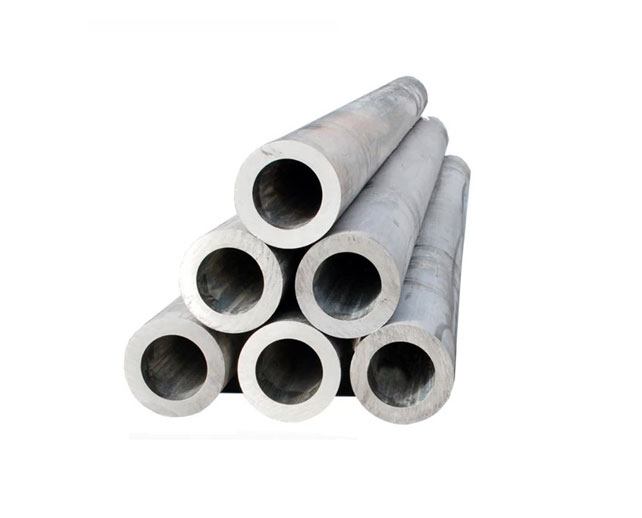

AISI 4130 ERW Tubes
AISI 4130 ERW Tubes

Specialized in AISI 4130 Pipes and Tubes

  • AISI 4130 Square Tubes
  • UNS G41300 Tubing
  • SAE 4130 Thin Wall Pipe
  • SAE 4130 Tubes
  • 4130 Chromoly Tubing Suppliers
  • AISI 4130 Pipe Manufacturer
  • Alloy Steel 4130 Pipe Exporters
  • Alloy Steel 4130 Pipe Pressure Rating
  • AISI 4130 Pipes at Best Price List In Mumbai
  • 4130 Chromoly Welded Pipe
  • 4130 Material Tubing Wholesale in Mumbai
  • AISI 4130 Tubes Supplier in India
  • 4130 Chromoly Steel Tubing
  • 4130 Low Alloy Steel Pipes
  • 4130 Chrome Moly Steel SMLS Tubing
  • AISI 4130 Seamless Pipe Schedule 80
  • 4130 Chromoly Round Pipes
  • UNS G41300 Tubing
  • 4130 Chrome Moly Steel Welded Pipes
  • AISI 4130 Custom Pipes Tubes
  • AISI 4130 Tube Manufacturers
  • 4130 Alloy Steel Tubes Stockist In India
  • 4130 Seamless Alloy Steel Pipe
  • AISI 4130 Alloy Steel Welded Tubes
  • Alloy Steel 4130 Schedule 40 Pipe Chart
  • AISI 4130 Seamless Tubes Price
  • AISI 4130 Pipe Supplier
  • 4130 Steel Tubing Price In India
  • AISI 4130 Heat Exchanger Tubes
  • Heavy Wall 4130 Alloy Steel Pipes
  • SAE 4130 Seamless Pipes
  • AISI 4130 Welded Pipe
  • AISI 4130 Steel Pipe
  • AISI SAE 4130 EFW Pipes
  • ASTM A519 4130 Alloy Steel Tube
  • AISI 4130 Pipes Stockist in Mumbai
  • AISI 4130 Tube Stockholder
  • 4130 Chromoly Steel Pipe
  • Chrome Molybdenum AISI 4130 Pipe
  • ASME SA519 Steel Alloy 4130 Seamless Tubes
  • SAE 4130 Hollow Pipe
  • SAE AISI 4130 Pipes Manufacturer
  • AISI 4130 Tubes Manufacturer
  • 4130 Alloy Steel Seamless Pipe
  • AISI 4130 Tube Manufacturer In India
  • 4130 Steel Pipes Tubes
  • SAE AISI 4130 Chromoly Welded Tubing
  • Chromoly AISI 4130 SMLS Pipes
  • AISI 4130 Industrial Pipes Tubing
  • AISI 4130 Rectangular Pipe
  • SAE 4130 Pipes in India
  • AISI 4130 Cold Drawn Seamless Tubing

SAE 4130 Chemical Composition of Pipes / Tubes

Grade Ni C Mo Mn Si Fe Cu S P Cr
AISI 4130 0.50 max 0.28-0.33 0.15-0.25 0.40-0.60 0.15-0.35 97.3-98.22 – 0.025 MAX 0.035 MAX 0.80-1.10

AISI 4130 Pipe & Tube Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
0.28 2580 460 MPa 560 MPa 20 %

AISI 4130 Seamless Pipe Weight Chart

Size NPS Pipe O.D. Wall Thickness Pipe I.D. Weight per Foot Standard to XXHY Schedule
Pipe # 		Section Modulus Gallon Capacity Per Linear Foot
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
    0.147 0.546 1.09 XHY 80 .0478 .0122
    0.188 0.464 1.31   160 .0528 .0088
    0.294 0.252 1.72 XXHY   .0577 .0026
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
    0.154 0.742 1.48 XHY 80 .0853 .0225
    0.219 0.612 1.95   160 .1006 .0153
    0.308 0.434 2.44 XXHY   .1103 .0077
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
    0.179 0.957 2.17 XHY 80 .1606 .0374
    0.250 0.815 2.85   160 .1904 .0271
    0.358 0.599 3.66 XXHY   .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
    0.191 1.278 3.00 XHY 80 .2913 .0666
    0.250 1.160 3.77 160 .3421 .0549
    0.382 0.896 5.22   .4110 .0328
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
    0.200 1.500 3.63 XHY 80 .4118 .0918
    0.281 1.338 4.86 160 .5079 .0730
    0.400 1.100 6.41 .5977 .0494
2 2.375 0.109 2.157 2.64 10 .4205 .1898
    0.154 2.067 3.66 STD 40 .5606 .1743
    0.218 1.939 5.03 XHY 80 .7309 .1534
    0.250 1.875 5.68 .8045 .1434
    0.281 1.813 6.29     .8666 .1344
    0.344 1.687 7.47   160 .9806 .1161
    0.436 1.503 9.04 XXHY   1.1043 .0922
2 1/2 2.875 0.120 2.635 3.53   10 .6870 .2833
    0.203 2.469 5.80 STD. 40 1.0640 .2487
    0.216 2.443 6.14     1.1169 .2435
    0.250 2.375 7.02     1.2468 .2301
    0.276 2.323 7.67 XHY 80 1.3386 .2202
    0.375 2.125 10.02   160 1.6371 .1842
    0.552 1.771 13.71 XXXHY   1.9971 .1280
3 3.50 0.120 3.260 4.34     1.0411 .4336
    0.156 3.188 5.58     1.3122 .4147
    0.172 3.156 6.12     1.4265 .4064
    0.188 3.124 6.66     1.5342 .3984
    0.216 3.068 7.58 STD. 40 1.7241 .3840
    0.250 3.000 8.69     1.9372 .3672
    0.281 2.938 9.67     2.1207 .3521
    0.300 2.900 10.26 XHY 80 2.2253 .3431
    0.438 2.624 14.34   160 2.8774 .2811
    0.600 2.300 18.6 XXHY   3.4243 .2158
3 1/2 4.0 0.120 3.760 4.98   10 1.3776 .5768
    0.226 3.548 9.12 STD. 140 2.3939 .5136
    0.250 3.500 10.02     2.6001 .4998
    0.281 3.438 11.17     2.8562 .4821
    0.318 3.364 12.52 XHY 80 3.1400 .4617
    0.636 2..728 22.87 XXHY   4.8795 .3085
4 4.5 0.120 4.260 5.62   10 1.7612 .7404
    0.156 4.188 7.24     2.2354 .7156
    0.188 4.124 8.67     2.6296 .6942
    0.203 4.094 9.32     2.8173 .6838
    0.219 4.062 10.02     3.0184 .6725
    0.237 4.026 10.80 STD. 40 3.2145 .6613
    0.250 4.000 11.36     3.3611 .6528
    0.281 3.938 12.67   60 3.7021 .6326
    0.312 3.876 13.97     4.0273 .6126
    0.337 3.826 15.00 XHY 80 4.2713 .5972
    0.438 3.624 19.02   120 5.1790 .5361
    0.531 3.438 22.53   160 5.8997 .4822
    0.674 3.152 27.57 XXHY   6.7927 .4054
5 5.563 0.188 5.187 10.80   4.1161 1.0979
    0.219 5.125 12.51     4.7279 1.0716
    0.258 5.047 14.63 STD. 40 5.4500 1.0391
    0.281 5.001 15.87     5.8644 1.0204
    0.312 4.939 17.51     6.4074 .99647
    0.344 4.875 19.19     6.9358 .9696
    0.375 4.813 20.80 XHY 80 7.4300 .9449
    0.500 4.563 27.06   120 9.2534 .8495
    0.625 4.313 32.99   160 10.7976 .7590
    0.750 4.063 38.59 XXHY   12.0954 .6734
6 6.625 0.109 6.407 7.59   5 3.5769 1.6748
    0.134 6.357 9.30   10 4.3475 1.6488
    0.156 6.313 10.79     5.0107 1.6260
    0.188 6.249 12.94     5.9351 1.5937
    0.203 6.219 13.94     6.3804 1.5780
    0.219 6.187 15.00     6.8261 1.5620
    0.250 6.125 17.04     7.6905 1.5306
    0.280 6.065 18.99 STD. 40 8.4958 1.5008
    0.312 6.001 21.06     9.3416 1.4688
    0.344 5.937 23.10     10.111 1.4391
    0.375 5.875 25.05     10.893 1.4082
    0.432 5.761 28.60 XHY 80 12.224 1.3541
    0.500 5.625 32.74     13.711 1.2909
    0.562 5.501 36.43   120 14.9806 1.2346
    0.625 5.375 40.09     16.1821 1.1787
    0.719 5.187 45.39   160 17.8243 1.0977
    0.864 4.897 53.21 XXHY   20.025 .9784
    1.000 4.625 60.13     21.7719 .8727
    1.125 4.375 66.14     23.1237 .7809

Wall Thickness Of 4130 Chromoly Tubing Suppliers

NPS [DN] Designator Tolerance, % from Specified
Over Under
1/8 to 2 1/2 [6 to 65] incl., all t/D ratios 20.0% 12.5%
Above 2 1/2 [65], t/D < or = 5% 22.5% 12.5%
Above 2 1/2 [65], t/D > 5% 15.0% 12.5%
(t = Specified Wall Thickness; D = Specified Outside Diameter)

AISI 4130 Pipe Dimensions

Size(inch) OD 40S 5S 10S S10 S20 S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
1/8 10.29 1.2 1.73 2.41
1/4 13.72 1.7 2.24 3.02
3/8 17.15 1.7 2.31 3.2
15 1/2 21.34 2.8 1.7 2.1 2.77 3.73 3.73 4.78 7.47
20 3/4 26.67 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
25 1 33.4 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
32 1 1/4 42.16 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
40 1 1/2 48.26 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
50 2 60.33 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
65 2 1/2 73.03 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
80 3 88.9 5.5 2.1 3.1 5.49 7.62 7.62 11.1 15.2
90 3 1/2 101.6 5.7 2.1 3.1 5.74 8.08 8.08
100 4 114.3 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
125 5 141.3 6.6 2.8 3.4 6.55 9.53 9.53 12.7 15.9 19.1
150 6 168.3 7.1 2.8 3.4 7.11 10.97 11 14.3 18.3 22
200 8 219.1 8.2 2.8 3.8 6.4 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
250 10 273.1 9.3 3.4 4.2 6.4 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
300 12 323.9 9.5 4 4.6 6.4 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
350 14 355.6 9.5 4 4.8 6.4 7.9 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7
400 16 406.4 9.5 4.2 4.8 6.4 7.9 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5
450 18 457.2 9.5 4.2 4.8 6.4 7.9 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2
500 20 508 9.5 4.8 5.5 6.4 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50
550 22 558.8 9.5 4.8 5.5 6.4 9.5 22.2 12.7 28.6 34.9 41.3 47.6 54
600 24 609.6 9.5 5.5 6.4 6.4 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5
650 26 660.4 9.5 7.9 13 12.7
700 28 711.2 9.5 7.9 13 12.7
750 30 762 9.5 6.4 7.9 7.9 13 12.7
800 32 812.8 9.5 7.9 13 17.5 12.7
850 34 863.6 9.5 7.9 13 17.5 12.7
900 36 914.4 9.5 7.9 13 19.1 12.7

AISI 4130 Tube Size

Wall Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

4130 Chromoly Steel Pipe and Tube Price List

  • SAE 4130 cold rolled tubing manufacturer: US$ 1,200.00-US$ 2,000.00
  • 4130 Chrome Moly Steel hot rolled pipe price per kg: US$ 999.00-US$ 2,110.00
  • ASME SA519 Seamless Cold Rolled Steel Tube: US$ 1,000.00-US$ 2,700.00
  • ASTM A519 Grade 4130 Pipe: US$ 30.00-US$ 400.00
  • AISI 4130 Pipe Price Per Meter: US$ 700.00-US$ 1,690.00
  • 4130 Material pipes tubes with factory price: US$ 230.00-US$ 1,254.00
  • AISI 4130 tubes price per kg: US$ 1.2-US$ 6.00/Kilogram
  • Seamless AISI 4130 Pipe Price Per Kg: US$ 1,000.00-US$ 2,789.00
  • 4130 Alloy Steel Pipe Price 20 Feet: US$ 800.00-US$ 1,000.00
  • Cheap price 4130 Chromoly Tubing: US$ 1,000.00-US$ 2,000.00/ton
  • AISI 4130 Pipe Price List: US$ 1,000.00-US$ 1,200.00
  • AISI 4130 hot rolled tubes standards: US$ 1,100.00-US$ 2,600.00
  • AISI 4130 Pipe Price Per Kg: US$ 325.00-US$ 1,450.00
  • AISI 4130 Alloy Steel cold rolled pipes: US$ 300.00-US$ 1,200.00
  • AISI 4130 Pipe Cost Per Meter: US$ 400.00-US$ 1,780.00
  • AISI 4130 pipes price per ton: US$ 500.00-US$ 1,440.00

Factory

Large power plant beside a river
A large factory with many pipes and tanks

Industries We Serve

  • Chemical Industry
  • Petrochemical Industry
  • Oil & Gas Industry
  • Marine Industry
  • Power Generation Industry
  • Sugar Industry
  • Marine Industry
  • Pharmaceuticals Industry
  • Cement Industry
  • Dairy Industry
  • Food Processing Industry
  • Paper & Pulp Industry
  • Offshore and Onshore Services
4130 Alloy Steel Tube Stockist | AISI 4130 Tubes Suppliers | Supplier of SAE 4130 Pipes | Chromoly AISI 4130 Pipe Tube Dealers In India | 4130 Steel Pipe Exporters | ASTM A519 Alloy Steel 4130 Seamless Round Tube | SAE 4130 Steel Pipe Price List | AISI 4130 SMLS Tubes

SAE AISI 4130 Pipes & Tubes Value Added Services

  • Turning
  • Boring
  • Honing
  • Grinding
  • Plating
  • Heat Treating
  • Cutting & Deburring
  • Charpy Impact Testing
  • Cut-To-Length
  • Angle Cuts
  • Production Cutting
  • Cold saw cutting
  • Large Iron Billet Cutting
  • Milling
  • Chamfering
  • Special inventory programs
  • Deburring
  • Special Packaging
  • Tube Laser Cutting
  • Lathe Tube Cutting
Pipe and tube cutting machine

Export Destinations For AISI 4130 Steel Pipe Tubes

Estonia, Switzerland, Netherlands, Tibet, Denmark, Serbia, Saudi Arabia, Azerbaijan, Gambia, South Korea, Philippines, Afghanistan, Iran, Singapore, Morocco, Qatar, China, Iraq, Greece, Israel, Portugal, Turkey, Nepal, Gabon, Ukraine, Lebanon, France, Mexico, United Kingdom, Venezuela, Yemen, Kenya, Finland, Trinidad & Tobago, Peru, Puerto Rico, Brazil, Bahrain, South Africa, Argentina, New Zealand, Sri Lanka, Sweden, Taiwan, Kazakhstan, Thailand, Japan, Hungary, Colombia, Libya, Chile, Algiera, Bolivia, Kuwait, Indonesia, Hong Kong, Belgium, Namibia, United Arab Emirates, Jordan, Norway, Bhutan, columbia, Zimbabwe, Bulgaria, Pakistan, Ghana, Italy, Costa Rica, Slovakia, Egypt, Oman, Canada, Australia, Romania, Malaysia, Mongolia, Nigeria, Poland, Angola, Czech Republic, Spain, Vietnam, Bangladesh, United States, Macau, Belarus, Algeria, Ecuador, Germany, Lahore, Austria, Russia, India, Tunisia, Lithuania, Croatia, Ireland.


Domestic Supply For AISI 4130 Pipes & Tubes

Bengaluru, Indore, Chennai, Kanpur, Kolkata, Thane, Ahmedabad, New Delhi, Noida, Faridabad, Navi Mumbai, Pimpri-Chinchwad, Rajkot, Bhopal, Ludhiana, Secunderabad, Pune, Nagpur, Haryana, Jaipur, Ernakulam, Ranchi, Jamshedpur, Surat, Hyderabad, Gurgaon, Howrah, Mumbai, Visakhapatnam, Thiruvananthapuram, Chandigarh, Nashik.
