Palgotta Metal Pvt Ltd provides high-grade duplex steel buttweld fittings for various industries. Our range of products meets the highest quality standards, providing durability and strength to our customers. All our fittings are designed to ensure maximum efficiency, focusing on safety, performance, and reliability. We offer buttweld fittings in various sizes, from small to large diameters. Our products are available in multiple finishes and materials, including stainless steel, carbon steel, alloy steel, and nickel alloys.
Our experienced team can provide tailored solutions for your unique requirements. We also offer technical support to ensure you get the best results for your application. With Palgotta Metal Pvt Ltd, you can trust that your buttweld fitting needs are taken care of. Contact us today to learn more about our products and services!
Table of Content

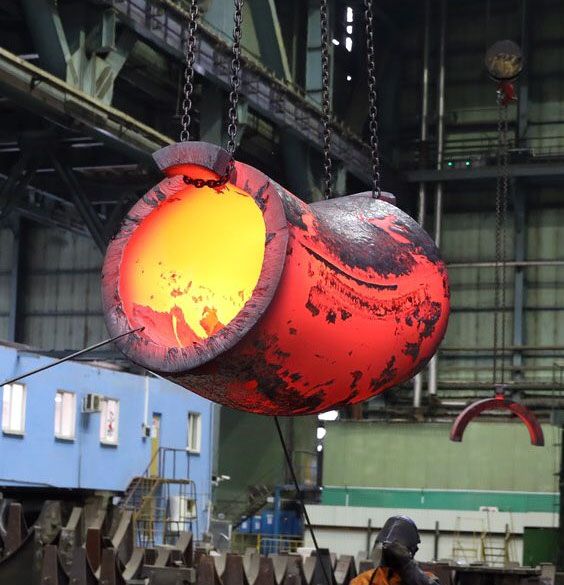

What are Duplex Steel Buttweld
Fittings?

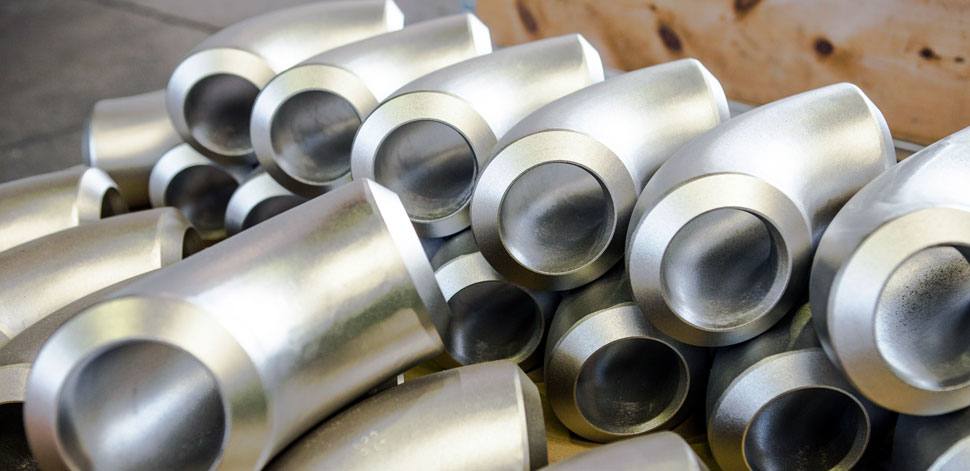

Duplex Steel Buttweld Fittings are durable and cost-effective components used in
piping systems. They provide a robust and reliable connection between two different
pipes, allowing for the easy transfer of fluids or gases. These fittings come in
various shapes, sizes, and materials to ensure they will meet any application’s
requirements.
What are the advantages of Duplex Steel Buttweld Fittings?
Duplex steel buttweld fittings offer many advantages over traditional welded
fittings, including increased strength and corrosion resistance. They also offer
superior welding capabilities due to their high chromium content, which provides
excellent oxidation resistance at elevated temperatures. The characteristic duplex
grain structure of the alloy provides improved flexibility compared to other steels,
so it can withstand higher pressure without cracking or deforming.
What are the applications of Duplex Steel Buttweld Fittings?
Due to their strength and corrosion resistance, Duplex Steel Buttweld Fittings are
used in various industries. They are commonly found in chemical plants, oil
refineries, power plants, and water treatment facilities. Other applications include
food processing equipment, automotive components, and industrial boilers. Their
superior performance makes them ideal for maritime or offshore applications that
withstand corrosive environments such as seawater or saltwater.
Duplex Steel Buttweld Fittings offer superior strength and corrosion resistance, making them the perfect choice for many piping systems. With their increased flexibility and welding capability at elevated temperatures, these fittings provide an effective solution for many applications.
ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness
T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 |
BW Fittings ANSI B16.9 Tolerance (45 And 90 degree) Elbow, End Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |
Reducer & Long Lap Joint Stub End |
Cap | |||
Fitting Dimension (NPS) | Outside Daimeter Diameter at Bevel |
Inside Diameter at End |
Wall Thick T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal Thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
-0.03 | ||||||
3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
-0.12 | ||||||
20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
-0.19 | ||||||
26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
-0.19 | ||||||
32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
-0.19 |
NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
1/4" | .540 | .282 | .119 | .105 | 1130 |
3/8" | .675 | .403 | .126 | .146 | 920 |
1/2" | .840 | .526 | .147 | .213 | 850 |
3/4" | 1.050 | .722 | .154 | .289 | 690 |
1" | 1.315 | .936 | .179 | .424 | 630 |
1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
2" | 2.375 | 1.913 | .218 | .984 | 400 |
2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |

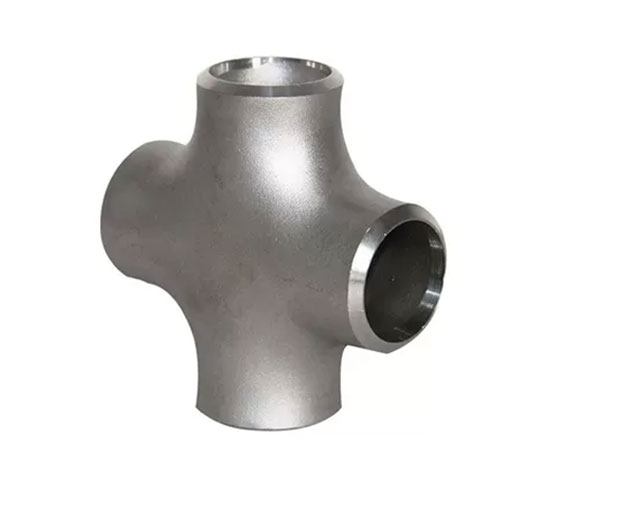

ASME B16.9 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Tees, Crosses, Lap Joint Stub Ends, Caps, Reducers |
ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
MSS SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Pressure-Temperature ratings for ASME B16.9 Buttweld fittings (psig) | |||||
---|---|---|---|---|---|
Temperature Ratings | Pressure Class | ||||
150 | 300 | ||||
1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
(oF) | (oC) | ||||
-20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
200 | 93 | 265 | 1785 | 1350 | 910 |
250 | 121 | 225 | 1575 | 1200 | 825 |
300 | 149 | 185 | 1360 | 1050 | 735 |
350 | 177 | 150 | 1150 | 900 | 650 |
400 | 204 | - | 935 | 750 | 560 |
450 | 232 | - | 725 | 600 | 475 |
500 | 260 | - | 510 | 450 | 385 |
550 | 288 | - | 300 | 300 | 300 |
