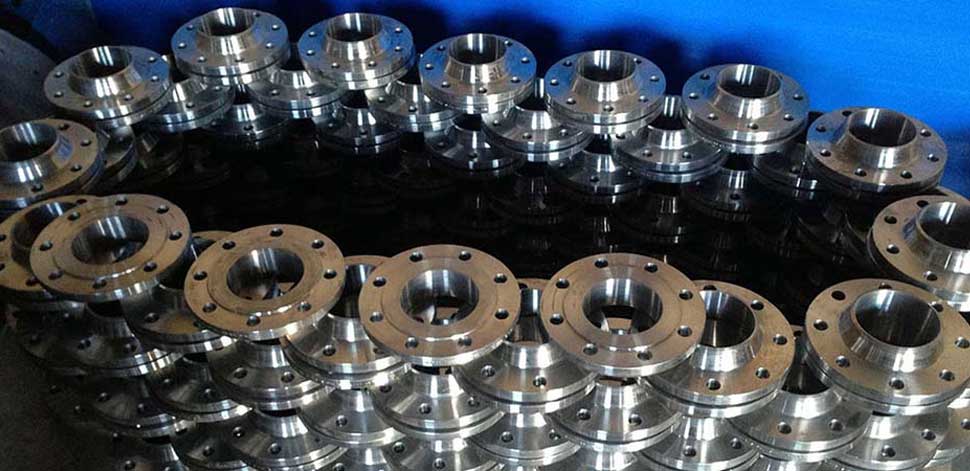

Palgotta Metal Pvt Ltd is a leading manufacturer of Duplex Steel Flanges. Our Duplex Steel Flanges are manufactured using high-grade raw materials from trusted vendors. We offer superior quality flanges in various sizes, shapes, and dimensions to suit the requirements of our customers. Our flanges are made using premium duplex steel and provide excellent corrosion resistance, strength, and durability compared to other alloys.
Table of Content
What are Duplex Steel Flanges?
Duplex steel flanges are a type of specialized industrial component made from a special alloy of stainless steel. This alloy contains chromium and nickel and has characteristics that make it highly durable and highly resistant to corrosion and stress cracking.
What are the features of Duplex Steel Flanges?
The features of Duplex Steel Flanges include superior resistance to general corrosion, excellent mechanical properties, high strength, and thermal stability. This makes it ideal for many applications, such as chemical processing, oil and gas industries, marine environments, food processing plants, and other industrial pipelines.
What are the advantages of Duplex Steel Flanges?
The advantages of Duplex Steel Flanges include excellent corrosion resistance in both acidic and alkaline media, low cost compared to other stainless steel alloys, and superior weldability. The strength of the flanges also makes them well-suited for pressure vessels and other components that need to tolerate high pressures.
What are the applications of Duplex Steel Flanges?
The applications of Duplex Steel Flanges include a wide range of industrial processes such as pipelines for water, oil, and gas, chemical plants, nuclear reactors, boilers, and condensers. They are also commonly used in offshore platforms, bridges, and marine industries due to their superior corrosion resistance and mechanical properties. In addition, they offer good workability when cutting or drilling during installation.
NPS (in.) |
Duplex Steel Flange Dimensions | ||||
---|---|---|---|---|---|
Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
12 | 19 | 12 | 7/8 | 1 | 17 |
14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
ASME | Pressure Temperature Ratings For Duplex Steel Flanges | ||||||
Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
