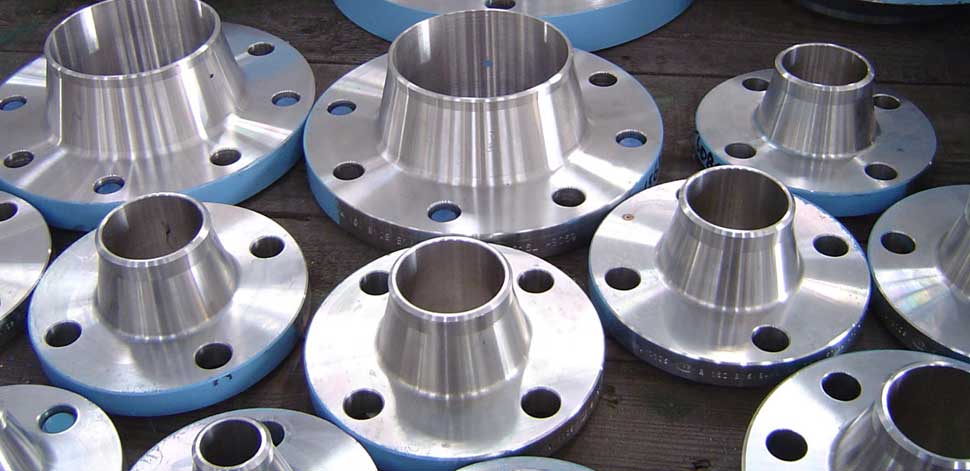

SS 310 / 310S Flanges are strength and temperature-resistant stainless steel products. These flanges offer enhanced resistance to corrosion, oxidation, and wear in hostile environments. They are available in various types, such as weld neck, slip-on, threaded, blind, and socket weld flanges, among others, and in different sizes and ratings to meet specific requirements.
Table of Content
What are SS 310 / 310S Flanges?
SS 310/310S Flanges are pipe fittings that connect pipes, valves, pumps, and other equipment to form a piping system. They are made from SS 310/310S, a high-temperature and corrosion-resistant alloy with high levels of chromium and nickel. SS 310 / 310S Flanges have been used for various applications such as nuclear power plants, petrochemical plants, oil refineries, natural gas facilities, boilers and pressure vessels, heat exchangers, and pumps.
What are the features of SS 310 / 310S Flanges?
SS 310/310S Flanges have the following features:
• The 310 SS pipe flange has a high tensile strength at elevated temperatures up to
2100°F (1149°C).
• They possess excellent creep rupture strength and good flexibility.
• They have outstanding formability and exceptional thermal stability.
• They demonstrate superior resistance to carburizing atmospheres and
stress-corrosion cracking.
• They are resistant to scaling up to 2000°F (1093°C).
What are the advantages of SS 310 / 310S Flanges?
SS 310 / 310S Flanges' advantages include superior corrosion resistance, high strength at elevated temperatures, exceptional formability, and excellent oxidation resistance. These SS 310 SWRF Flange is also easy to machine using conventional methods.
What are the applications of SS 310 / 310S Flanges?
Typical applications for SS 310/310S Flanges include oil refineries, food processing equipment, power generation plants, aerospace components, petrochemical facilities, medical instruments and devices, pumps, and valves used in chemical processing plants. They have also been used in heat exchangers and condensation lines. Furthermore, various industrial process piping systems can use Stainless steel 310S Reducing Flanges, including those that handle cryogenic or hot gases such as steam. Their excellent corrosion and temperature resistance are ideal for marine, chemical, pharmaceutical, and petrochemical applications.
Palgotta Metal Pvt Ltd is a leading SS 310 / 310S flanges manufacturer. Our 310S SS plate flange is made from high-grade stainless steel and is designed for maximum strength and durability in extreme conditions. We offer our clients an extensive range of SS 310 / 310S flanges, including blind, slip-on, socket weld, threaded, lap joint, and weld neck designs. Our products are designed to meet international quality standards and ensure maximum performance and reliability. We also provide custom flange manufacturing services as per customer requirements. Our commitment to quality and excellent after-sales service guarantees complete client satisfaction with all our SS 310 / 310S flanges.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
SS 310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
NPS (in.) |
310 Stainless Steel Flange Dimensions | ||||
---|---|---|---|---|---|
Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
12 | 19 | 12 | 7/8 | 1 | 17 |
14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
ASME | Pressure Temperature Ratings For Stainless Steel 310 Flanges | ||||||
Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
