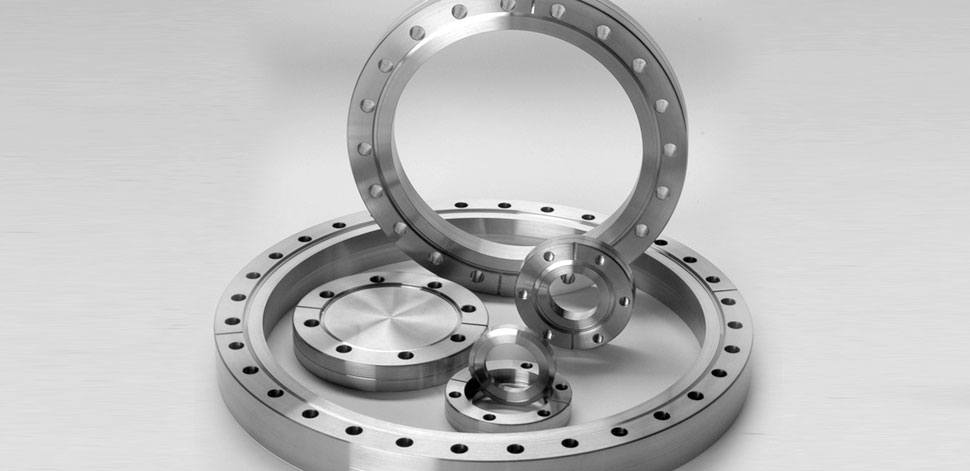

At Palgotta Metal Pvt Ltd, we are pleased to present SS 347H Flanges to meet your industrial requirements. Crafted from premium stainless steel, our flanges are adaptable to various applications and can be customized accordingly. Our unwavering commitment to providing exceptional products that adhere to the highest safety and reliability standards is a source of great pride for us. Our SS 347H Flanges are manufactured using cutting-edge techniques, ensuring their longevity and resilience.
They are corrosion-resistant and withstand high temperatures, making them a perfect fit for industrial processes. With our extensive range of sizes and specifications, you will find the ideal component to cater to your needs.
Contact us today to discover more about our products or initiate an order. We eagerly anticipate your response!
Table of Content
What is 347H Stainless Steel Pipe Flange?
347H Stainless Steel Pipe Flange are industrial components used to connect equipment in high-pressure and high-temperature piping systems. They are made of high-quality stainless steel, known for their corrosion resistance and high-temperature strength. They are commonly used in chemical processing, oil and gas, and power generation industries.
What are the features of Stainless Steel 347H Flanges?
Stainless Steel 347H Flanges are durable and versatile industrial components with excellent corrosion resistance and high-temperature strength. They are available in various sizes and can be customized to meet specific requirements. They are easy to install and have a high rating, making them ideal for high-pressure applications in chemical processing, oil and gas, and power generation.
What are the advantages of Stainless Steel 347H Flanges?
Stainless Steel 347H Flanges offer exceptional corrosion resistance and high-temperature strength and are durable, versatile, and easy to install. They have a high-pressure rating and can be customized to meet specific requirements, making them a cost-effective solution for industrial piping applications.
What are the 347h stainless steel flanges dimensions?
The dimensions of 347H stainless steel flanges can vary depending on the type and size of the flange. Typically, the flange dimensions are specified by industry standards such as ASME B16.5 or ASME B16.47, which define the flanges' length, thickness, and bolt-hole patterns. The most common sizes for 347H stainless steel flanges range from ½ inch to 24 inches, with larger sizes available on request. The thickness of the flanges can vary from schedule 10 to schedule 160. It's essential to refer to the specific industry standards or manufacturer's specifications to ensure the flange dimensions are suitable for the intended application.
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
NPS (in.) |
347H Stainless Steel Flange Dimensions | ||||
---|---|---|---|---|---|
Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
12 | 19 | 12 | 7/8 | 1 | 17 |
14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 347H.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
ASME | Pressure Temperature Ratings For Stainless Steel 347H Flanges | ||||||
Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
