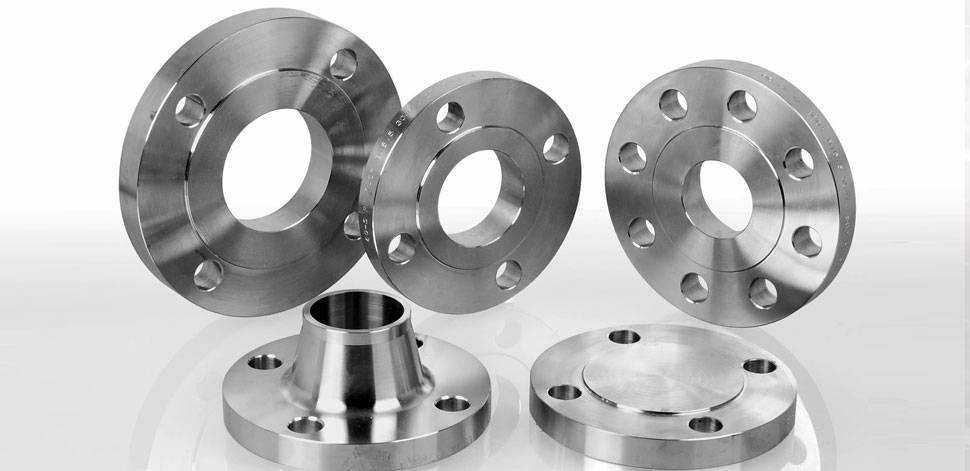

Palgotta Metal Pvt Ltd is a trusted supplier of high-quality SS 446 Flanges that conform to international standards. These flanges are made from superior-grade stainless steel that is strong and durable. We offer various sizes and shapes, including concentric, eccentric, blind, and threadless flanges, in ANSI/ASME and DIN standards. Our SS 446 flanges are corrosion-resistant and heat-resistant due to their chromium, molybdenum, and nitrogen content, providing excellent oxidation resistance. Also, all our products come with a quality guarantee certificate. With us, you can be confident that you will receive top-quality SS 446 Flanges at a competitive price.
Our 446 stainless steel flanges are widely used in various industries for joining two components with superior strength and corrosion resistance. They are made of high-grade stainless steel that contains chromium, molybdenum, and nitrogen, which provide excellent oxidation and heat resistance properties. These Stainless steel 446 flanges are available in various sizes, shapes, and types, including concentric, eccentric, blind, and threadless flanges, meeting ANSI/ASME and DIN standards.
Table of Content
Proper installation and maintenance of SS 446 flanges can ensure their reliability and durability even in harsh conditions. Moreover, they are cost-effective and provide long-term solutions for joining two components. These flanges are commonly used in the chemical processing, petrochemical, and oil and gas industries.
When choosing Stainless Steel 446 flanges, it's essential to consider factors such as size, pressure rating, temperature range, and material compatibility. We provide high-quality AISI 446 stainless steel flanges manufactured to fit international standards and come with a certificate of guarantee for quality assurance.
Contact us today to learn more about our range of SS 446 flanges and how we can help you find the right solution for your specific application.
What is the maximum temperature that Stainless Steel 446 flanges can withstand?
Stainless Steel 446 flanges can withstand temperatures up to 1500°C (2732°F) due to their high chromium content, which provides excellent resistance to oxidation and scaling at high temperatures.
What is the difference between ANSI/ASME and DIN standards for 446 stainless steel flanges?
The difference between ANSI/ASME and DIN standards for 446 stainless steel flanges lies in their dimensional specifications and design criteria. While ANSI/ASME flanges are commonly used in North America and have imperial measurements, DIN flanges are widely used in Europe and have metric sizes. Also, ANSI/ASME flanges typically have a higher pressure rating and are designed with a larger hub diameter, while DIN flanges have a thinner and smaller hub diameter. Eventually, the choice between ANSI/ASME and DIN standards for 446 stainless steel flanges will depend on the specific application and geographic location.
Can 446 Stainless steel flanges be used with other types of piping materials?
Yes, 446 stainless steel flanges can be used with different types of piping materials as long as they are compatible with the chemical and physical properties of the other materials. However, consulting with a qualified engineer or manufacturer is essential to ensure proper compatibility and prevent potential issues such as corrosion or leakage.
STANDARD | UNS | WERKSTOFF NR. | EN | STAS | PN | DIN | AFNOR | AISI |
Grade 446 | S44600 | 1.4762 / 1.4763 | X10CrAlSi25 / X10CrAlSi24 | X10CrAl240 | H24JS | X10CrAl24 | Z12CAS25 | 446 |
Grade | C | Mn | Si | P | S | SI | Ni | Cr | Mo | N | TI + CB | OTHER |
SS 446 | 0.030 max | 1.0 max | 1.0 max | 0.040 max | 0.030 max | 1.0 max | 1.0 – 3.50 | 25.0 – 28.0 | 3.0 – 4.0 | 0.040 max | 0.20 – 1.0 | 6x(C + N) min |
DENSITY | MELTING POINT | ANNEALED | QUENCH |
7.7 g/cm 3 / 0.28 lb/in 3 | 1510 (°C) / 2750 (°F) | 800 – 860 (°C) / 1650 – 1700 (°F) | Rapid Water |
NPS (in.) |
446 Stainless Steel Flange Dimensions | ||||
---|---|---|---|---|---|
Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
12 | 19 | 12 | 7/8 | 1 | 17 |
14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
ASME | Pressure Temperature Ratings For Stainless Steel 446 Flanges | ||||||
Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
