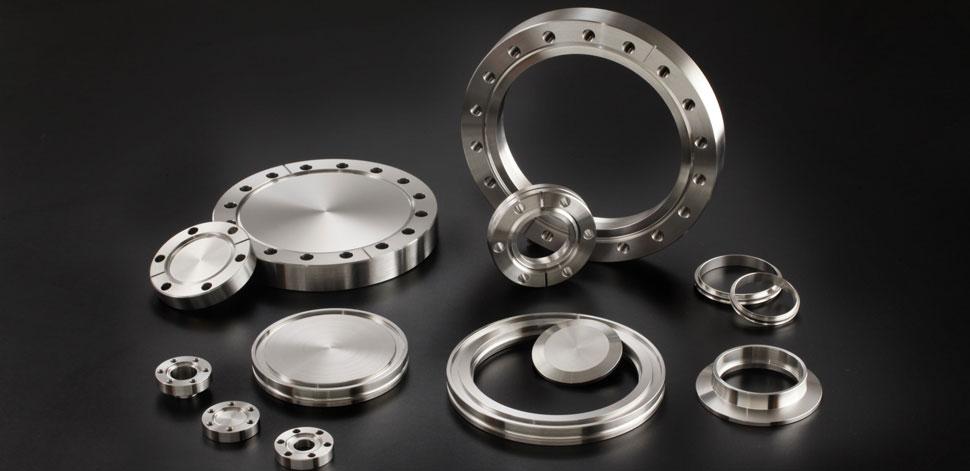

Stainless Steel 317L Flanges Supplier, Stockist
317L Stainless Steel Flanges, SS 317L Flanges, 317L SS Pipe Flanges, Stainless Steel 317L Flanges, Stainless Steel 317L Flat Face Flange, Flange SS 317L, SS 317L Raised Face Flange, UNS S31703 Flange, ASTM A182 F317L Flanges Supplier in Mumbai, India.
Palgotta Metal Pvt Ltd specializes in manufacturing SS 317L Flanges, which are widely used in various industries such as petrochemical, pharmaceutical, oil, and gas, among others. Our flanges are meticulously designed to meet the specific requirements of these hazardous applications, providing superior quality and finish that ensures their reliability even in demanding environments.
We offer a diverse range of 317l stainless steel flanges in various sizes, pressure ratings, and configurations to cater to different application needs. Our customers can also benefit from our customization services, where we tailor our flanges to meet their specific requirements.
Our flanges are manufactured from high-grade steel, making them highly durable and strong, suitable for heavy-duty usage. With our focus on quality and attention to detail, our 317l stainless steel pipe flanges are the preferred choice for various industrial applications.
Table of Content
317L SS BLRF Flange, ASME SA182 F317L Socket Weld Flange, SS 317L Slip on Flanges, Stainless Steel 317L Flanges Manufacturers, 1.4438 Weld Neck Flanges, ANSI / ASME B16.5 317L Stainless Steel Plate Flange, SS 317L Flanges Suppliers, Stainless Steel 317L Flanges Stockist in India.
Contact us today to learn more about our 317/317L Stainless Steel Flanges and how we can assist you with your project.
What are Stainless Steel 317L Flanges?
Stainless Steel 317L Flanges are renowned for their superior strength and excellent corrosion resistance. Their remarkable mechanical properties, formability, and weldability make them a top choice for diverse applications. These flanges are available in several forms, including slip-on flange (SO), welding neck flange (WN), threaded flange (TF), lap joint flange (LJF), socket welding flange (SWF), and blind flange (BL). Each of these forms serves specific functions and meets varying industrial needs.
What are the features of Stainless Steel 317L Flanges?
Stainless Steel 317L Flanges possess several notable features, including exceptional resistance to corrosive environments such as chemicals, acids, and alkalis. They also exhibit excellent thermal stability, enabling them to withstand high temperatures. Additionally, they have a low thermal expansion coefficient, high strength-to-weight ratio, and good formability.
What are the advantages of 317l stainless steel flanges?
317L stainless steel flanges offer excellent corrosion resistance, high-temperature resistance, good mechanical properties, versatility, ease of fabrication, and hygienic properties, making them suitable for use in harsh and corrosive environments, high-temperature applications, various industries, and applications where hygiene is crucial. They are easily fabricated into different shapes and sizes without affecting their properties.
What are the applications of SS 317L Flanges?
Stainless Steel 317L Flanges have diverse applications across several industries, including marine, chemical, and petrochemical processing, construction, food processing, water treatment, power generation, automotive manufacturing, aerospace engineering, building construction, piping systems, electric motors, machine tools, and more.
Stainless Steel 317L Flanges Specification
- Standards: ASTM A182 / ASME SA182
- Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
- Size: 1/2" (15 NB) to 48" (1200NB)
- Class: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
- Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
- Flange Face Types: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
- Specialized manufacturer of: Rtj Flanges, Pn16 Flanges, DIN 2566 pn16, DIN 2566 en 1092 1, DIN 2566 pn10, Lap Joint Flanges, Loose Flange, Orifice Flange, AS 4087 Water Flanges, Weld Neck Flanges, Flanges, Slip-On Flanges, Socketweld Flange, Plate Flanges, Large Diameter Flanges, Sorf Flange, Blind Flanges, Table Flange
Equivalent Material of Stainless Steel 317L Flanges
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Specialized in Stainless Steel 317L Flanges
- Stainless Steel 317L Large Diameter Flange
- 317L Stainless Steel Flanges Stockist In India
- Stainless Steel 317L Flanges Supplier in India
- Stainless Steel 317L Orifice Flanges
- Stainless Steel 317L Paddle Blind Flange
- 317L Stainless Steel Flat Face Blind Flange
- Stainless Steel 317L SORF Flanges
- SS 317L Large Tongue Flange
- SS 317L Flanges Wholesale in Mumbai
- 317L Stainless Steel SWRF Flanges
- Stainless Steel 317L BLFF Flanges
- SS 317L Slip On Plate Flange
- Stainless Steel 317L Threaded Flanges Exporters
- Stainless Steel UNS S31703 Flange
- Stainless Steel 317L WNFF Flanges
- ASTM A182 F317L SS Forged Flange
- ASME SA182 F317L Stainless Steel Pipe Flanges
- Stainless Steel 317L Spacer Ring Flanges
- Stainless Steel 317L Paddle Blank and Spacer
- Stainless Steel 317L Loose Plate Flange
- 317L SS Weld Neck Raised Face Flanges
- 317L Stainless Steel SWFF Flanges
- 317L Stainless Steel Threaded Flanges
- SUS 317L Screwed Flanges
- Stainless Steel 317L Pipe Flange Spacer Ring
- Stainless Steel 317L Flanges Pressure Rating
- SS 317L Tongue and Groove Flanges in India
- Stainless Steel 317L Slip On Flat Face Flange Stocks
- Stainless Steel 317L RTJ Flanges Supplier
- AISI 317L Flanges
- Stainless Steel 317L Reducing Flange
- Stainless Steel 317L Flanges Stockholder
- SS 317L WNRF Flanges
- Stainless Steel 317L NPT Threaded Flanges
- Stainless Steel 317L SORTJ Flanges
- 317L Stainless Steel Custom Flanges
- SS 317L Flanges Stockist in Mumbai
- SS 317L BSP Threaded Flanges
- SS 1.4438 Flanges
- Stainless Steel 317L Flange
- Stainless Steel 317L Industrial Flanges
- 317L Stainless Steel Ring Type Joint Flanges
- Stainless Steel 317L Nipoflange
- 317L SS Flangeolet
- 317L Stainless Steel Flanges Manufacturer
- 317L Stainless Steel SOFF Flanges
- SS 317L Flanges at Best Price In India
- SS 317L ASME B16.36 Orifice Flange
- Austenitic Stainless Steel 317L Flanges
- Stainless Steel 317L Spectacle Blind Flanges
Chemical Properties Of 317L Stainless Steel Flanges
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
SS 317L Flanges Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 317L Flanges Dimensions
| NPS (in.) |
317L Stainless Steel Flange Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
SS 317L Flanges Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
UNS S31703 Flange Pressure Rating Chart
| ASME | Pressure Temperature Ratings For Stainless Steel 317L Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
317L SS Flanges Price List
- cheap price 317l stainless steel Flanges
FOB Price: US$ 1.50 - 90.00 / Piece - 317l stainless steel blrtj flange price list
FOB Price: US$ 1.00 - 67.00 / Piece - 317l stainless steel raised face blind flange
FOB Price: US$ 54.00 - 180.00 / Piece - 1.4571 sus 317l ss weld neck pipe flange price
FOB Price: US$ 3.00 - 200.00 / Piece - astm a182 317l stainless steel flanges
FOB Price: US$ 2.00 - 3.50 / Piece - 317l stainless steel ansi 150lbs bsp threaded flanges
FOB Price: US$ 1.00 - 130.00 / Piece - asme b16.5 317l stainless steel rf flange
FOB Price: US$ 3.50 - 170.00 / Piece - ss 317l plate flanges price per ton
FOB Price: US$ 7.60 - 19.90 / Piece - ansi b16.5 ss 317l threaded / screwed flanges
FOB Price: US$ 2.00 - 130.00 / Piece - aisi 317l flange cost
FOB Price: US$ 0.55 - 50.00 / Piece - top quality 317l stainless steel flanges with factory price
FOB Price: US$ 1.80 - 3.40 / Piece - 317l stainless steel socket wld raised face flanges (swrf)
FOB Price: US$ 2.10 - 130.00 / Piece
ASTM A182 F317L Flanges Manufacturers in India | SS 317L Flanges Latest Price | 317L Stainless Steel Forged Threaded Flange | SS 317L Flange Exporters | SS 317L Plate Flanges Stockists | 317L SS Flanges Suppliers | Supplier of Stainless Steel 317L Flanges
