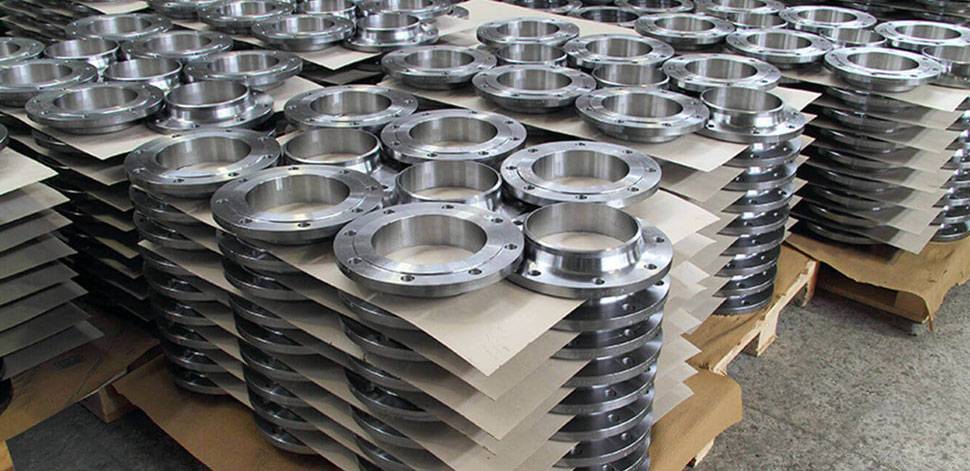

Palgotta Metal Pvt Ltd manufactures cost-effective 410 stainless steel flanges for applications involving mild corrosive environments. The flanges are manufactured using high-grade stainless steel and designed to meet industry standards. These flanges are available in various sizes, ranging from 15NB (1/2”) to 600NB (24”), and are suitable for welding, brazing, and threaded connections. Customers can choose from various flanges, including blind, slip-on, weld neck flanges, and more.
Our Stainless Steel 410 Flanges provide several advantages that make them highly suitable for various applications. With their exceptional strength and resistance to corrosion, they are an ideal choice for many industries. Also, they are easy to install, cost-effective, and require minimal maintenance, making them an attractive option for various projects. Stainless Steel 410 Flanges are a practical and excellent choice for numerous applications.
Contact us today to learn more about our 410 stainless steel flanges and our commitment to quality and customer satisfaction.
Table of Content
What are Stainless Steel 410 Flanges?
Stainless Steel 410 Flanges are made from a grade of stainless steel called 410. Stainless Steel 410 is a martensitic stainless steel that contains 11.5% to 13.5% chromium and has good corrosion resistance, high strength, and hardness. It is often used in applications where high strength and corrosion resistance are required, such as in the construction of pressure vessels, chemical processing equipment, and oil and gas industry equipment. The flanges from Stainless Steel 410 are designed to connect pipes or valves to other equipment, such as pumps or tanks, in a piping system. They are available in various sizes, shapes, and pressure ratings and are typically used in high-pressure and high-temperature applications. The flanges are usually welded or screwed onto the piping or equipment and are designed to provide a secure and leak-proof connection.
What is the maximum temperature that Stainless Steel 410 Flanges can withstand?
The maximum temperature that Stainless Steel 410 Flanges can withstand depends on several factors such as the size, pressure rating, and specific application. However, generally speaking, Stainless Steel 410 Flanges have good high-temperature resistance and can withstand temperatures up to approximately 1200°F (649°C).
What are the common applications of Stainless Steel 410 Flanges?
Stainless Steel 410 Flanges are widely used in various industries due to their high strength, excellent durability, and superior corrosion resistance. These flanges are designed to connect pipes or valves to other equipment in a piping system and are available in different sizes, shapes, and pressure ratings. They find extensive applications in the oil and gas industry, chemical processing, power generation, aerospace, pharmaceutical, food processing, shipbuilding, water treatment, etc. Stainless Steel 410 Flanges are commonly used in high-pressure and high-temperature applications and are suitable for constructing pressure vessels. These flanges provide a secure and leak-proof connection, making them a reliable choice for various industrial applications.
What are the benefits of using Stainless Steel 410 Flanges over other materials?
Stainless Steel 410 Flanges have high strength, durability, corrosion resistance, and heat resistance and are available in various sizes, making them ideal for use in demanding industrial environments. They can withstand high temperatures and are versatile, suitable for use in different piping system applications, such as in the oil and gas, chemical processing, and power generation industries.
How are Stainless Steel 410 Flanges installed?
Stainless Steel 410 Flanges can be installed through welding or bolting methods. Welding creates a permanent strong and leak-proof connection, while bolting allows for easier disassembly and maintenance. The installation includes cleaning and aligning the pipes, selecting the correct flange size, and tightening the bolts to the recommended torque. It is important to follow proper installation procedures to ensure a secure and leak-proof piping system connection.
WERKSTOFF NR. | GRADE | UNS | BS | JIS | GOST | AFNOR | EN |
1.4006 | AISI 410 | S41000 | 410S21 | SUS 410 | – | – | X12Cr13 |
SS | Si | C | Mn | P | Cr | S | Mo | Ni | N |
AISI 410 | 1.0 max | .15 max | 1.0 max | .040 max | 11.5 – 13.5 | .030 max | – | 0.50 max | – |
SS | Yield Strength 0.2% offset ksi (MPa) Minimum |
Tensile Strength ksi (MPa) Minimum |
Elongation (% in 50mm) Minimum |
Hardness (Brinell) Maximum |
Hardness (Rockwell B) Maximum |
Grade 410 | 30 (205) | 65 (450) | 20 | 217 | 96 |
NPS (in.) |
410 Stainless Steel Flange Dimensions | ||||
---|---|---|---|---|---|
Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
12 | 19 | 12 | 7/8 | 1 | 17 |
14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Pipe Normal Diameter (inch) | Outer diameter Flange | Thickness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
ASME | Pressure Temperature Ratings For Stainless Steel 410 Flanges | ||||||
Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
